Out of stock
3500RAFYM

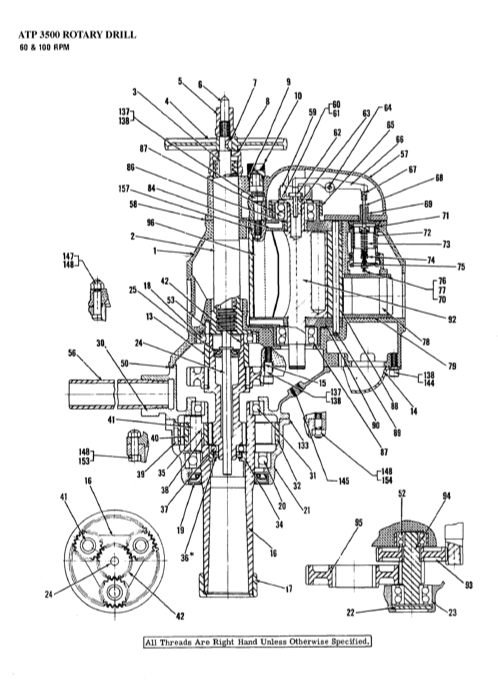

LARGE DRILL
5 Morse Taper, Roll Throttle, Feed Screw, 60 RPM Free Speed
Features
- Reversible self -closing roll throttle with reverse
- Governor controlled motor maintains speed and power under load
- Feed screw for drilling and reaming down force
- Integral #5 Morse taper
- Ball bearing support for long life and smooth operation
Specifications
| Free Speed rpm | 60 |
|---|---|
| Drilling Capacity Steel in | Heavy |
| Drilling Capacity Steel mm | Heavy |
| Reaming Capacity Steel in | Heavy |
| Reaming Capacity Steel mm | Heavy |
| Reversible | Yes |
| Spindle Attachment in | 5 Morse Taper |
| Net Weight lb | 69 |
| Net Weight kg | 31.40 |
| Maximum hp | 5.9 |
| Maximum Kw | 4.43 |
| Side to Center Distance in | 2.75 |
| Side to Center Distance mm | 69.9 |
| Height Over Spindle in | 23.25 |
| Height Over Spindle mm | 591 |
| Air Inlet NPT in | 1 |
| Hose ID in | 1 |
| Performance Pressure PSIG | 90 |
| Performance Pressure Bar | 6.2 |
| Air Consumption cfm | 165 |
| Air Consumption l/min | 4,672 |
| OEM | Chicago Pneumatic |
| Comparable OEM Model | CP-3500-RAFYM |
